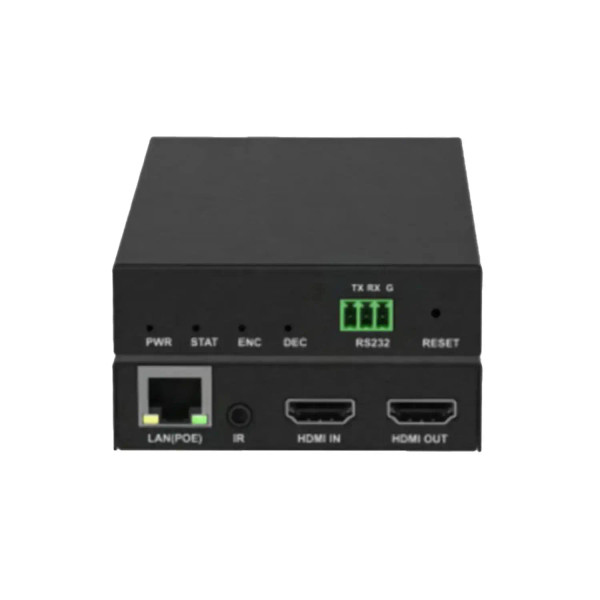

This HDTV Supply's WolfPack 4K 60 4:4:4 AV over IP Transceiver with IR, RS232, HDMI 2.0 & HDCP 2.3/2.2 is a compact AV over IP device configurable as either an encoder or decoder for flexible system deployment.
It supports HDMI input and output up to 4K@60Hz 4:4:4 with HDR formats, along with multi-channel audio support.
The device enables transmission of AV, RS-232, and IR signals over a standard Gigabit network, supporting flexible routing within a matrix system and video wall applications.
With support for Dante AV-A and AES67 audio, it integrates seamlessly into IP-based audio and video environments.
Designed for reliability and ease of integration, it offers low latency performance, PoE support, and centralized management via the SC010 controller, making it suitable for AV distribution and control applications.
WolfPack 4K 60 4:4:4 AV over IP Transceiver with IR, RS232, HDMI 2.0 & HDCP 2.3/2.2 Features:
- Configurable as an encoder or decoder.
- Supports HDMI input and output resolutions up to 3840 x 2160@60Hz 4:4:4 with HDCP 2.3 compliance.
- Supports HDR10, HDR10+, and Dolby Vision.
- Supports multi-channel audio, including PCM 7.1, Dolby Atmos, DTS-HD Master audio, and DTS:X.
- Supports Dante AV-A via firmware (not activated by default).
- Supports AES67 audio:
- AES67 standalone
- AES67 with integrated Dante (Dante activation required)
- Flexible routing of AV, RS-232 and IR signals independently or together within the matrix system.
- Supports 1-frame latency, with Ultra Low Latency (ULL) mode as low as 4ms.
- Transmits or receives signals over a single Cat 5e (or higher) cable up to 328ft (100m).
- Supports bidirectional RS-232 communication for device control or signal passthrough.
- Provides a configurable IR port for input and output, supporting IR control
- Interoperable with the IP5100 series for matrix routing and video walls.
- Supports PoE (802.3af) for power supply via a remote PoE-capable switch.
- Supports IEEE 802.1X authentication.
- Compatible with the SC010 controller for centralized device management.
- Supports fail-safe firmware upgrade to prevent device corruption during updates.
Why not buy this WolfPack 4K 60 4:4:4 AV over IP Transceiver with IR, RS232, HDMI 2.0 & HDCP 2.3/2.2 form HDTV Supply today?
WolfPack 4K 60 4:4:4 AV over IP Transceiver with IR, RS232, HDMI 2.0 & HDCP 2.3/2.2 Specifications:
- Technical:
- Input Video Port:
- 1 x HDMI Type-A
- 1 x LAN RJ-45 Female Connector (Decoder mode)
- Input Video Type:
- HDMI 2.0, HDCP 2.2/2.3
- IP Stream
- Input Resolutions:
- 3840 x 2160p@24/25/30/50/60Hz 4:4:4
- 1920 x 1200@50/60Hz
- 2400 x 1350p@60Hz
- 1920 x 1080p@24/25/30/50/60/100/120Hz
- 1920 x 1080i@50/60Hz
- 1680 x 1050@60Hz
- 1600 x 1200@60Hz
- 1600 x 900@60Hz
- 1400 x 1050@60Hz
- 1440 x 900@60Hz
- 1366 x 768@60Hz
- 1360 x 768@60Hz
- 1280 x 1024@60Hz
- 1280 x 960@60Hz
- 1280 x 800@60Hz
- 1280 x 768@60Hz
- 1280 x 720p@60/100/120Hz
- 1024 x 768@60Hz
- 800 x 600@60Hz
- 720 x 576p@50Hz
- 720 x 480p@60Hz
- 640 x 480p@60Hz
- Output Video Port:
- 1 x HDMI Type-A
- 1 x LAN RJ-45 Female Connector (Encoder mode)
- Output Video Type:
- HDMI 2.0, HDCP 2.2/2.3
- IP Stream (Encoder mode)
- Output Resolutions:
- Same as the input resolutions
- Input Audio Port:
- 1 x HDMI Type-A
- 1 x LAN RJ-45 Female Connector (Decoder mode)
- Output Audio Port:
- 1 x HDMI Type-A
- 1 x LAN RJ-45 Female Connector (Encoder mode)
- Audio Format:
- Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
- Dante Audio Type:
- LPCM 2.0, 44.1/48/88.2/96 kHz
- Input/Output Video Signal:
- 0.5~1.2 V p-p
- Input/Output DDC Signal:
- 5V p-p (TTL)
- Video Impedance:
- 100Ω
- End-to-End Latency:
- For 4K@60Hz:
- Normal mode: 19ms
- Ultra Low Latency mode: 4ms
- Maximum Data Rate:
- 18Gbps (6Gbps per color)
- Maximum Pixel Clock:
- 600MHz
- Input Video Port:
- Control:
- Control Method: Telnet API; SC010 Controller
- General:
- Operating Temperature/Humidity: 32–113°F (0–45°C), 10%–90% RH, non-condensing
- Storage Temperature/Humidity: -4–158°F (-20–70°C), 10%–90% RH, non-condensing
- ESD Protection: Human body model: ±8kV (air-gap discharge) / ±4kV (contact discharge)
- Power:
- Power Consumption (Max): PoE, 7.8W
- Dimensions (W x H x D): 3.15'' x 0.80'' x 5.59'' (80mm x 20.2mm x 142mm)
- Net Weight: 0.62lb (0.28kg)
Why not buy this WolfPack 4K 60 4:4:4 AV over IP Transceiver with IR, RS232, HDMI 2.0 & HDCP 2.3/2.2 form HDTV Supply today?
WolfPack 4K 60 4:4:4 AV over IP Transceiver User Manual
Why not buy this WolfPack 4K 60 4:4:4 AV over IP Transceiver with IR, RS232, HDMI 2.0 & HDCP 2.3/2.2 form HDTV Supply today?
Does this WolfPack unit act as both an encoder and a decoder?
A: Yes — the HDTV5100 WolfPack transceiver is configurable as either an encoder or a decoder.
What maximum HDMI resolution and chroma does it support?
A: It supports HDMI up to 3840 x 2160 at 60Hz with 4:4:4 chroma.
Does the device support HDCP?
A: Yes — the unit supports HDCP 2.3 and 2.2.
Is Power over Ethernet (PoE) supported?
A: Yes — the transceiver supports PoE (802.3af).
What control interfaces are available for integration and management?
A: You can control the device via Telnet API or the SC010 controller.
Can I send IR and RS-232 signals over the same network with video?
A: Yes — the HDTV5100 transmits AV, RS-232, and IR signals over a standard Gigabit network and supports flexible routing of those signals within the matrix system.
How far can I run a single Cat cable between the encoder and decoder?
A: You can transmit over a single Cat 5e (or higher) cable up to 328 ft (100 m).
What latency should I expect for 4K@60Hz video?
A: For 4K@60Hz latency is 19 ms in normal mode and can be as low as 4 ms in Ultra Low Latency (ULL) mode.
Will this integrate with Dante or AES67 audio systems?
A: Yes — it supports Dante AV-A via firmware (not activated by default) and supports AES67 audio, including AES67 standalone or AES67 with integrated Dante (Dante activation required).
Does the package include IR accessories and mounting hardware?
A: Yes — the package includes a broadband IR receiver (30–50 kHz, 1m), an IR emitter (1.2m), two wall mount brackets with screws, and a 3.5mm 3-pin Phoenix male connector in addition to the transceiver unit.
